SH-2PC2 Pc body · Screwed end
2PC Screwed End Ball Valve
Two-piece, full-port stainless-steel ball valve with screwed ends.
- Pressure
- PN 25
- Range
- DN 8 to DN 100
Zoom 1.0×
Ctrl/⌘ + scroll or double-click to zoom · drag to panPinch to zoom · drag to pan
Photographic view from the official catalogue. A 360° rotatable view will be available once 3D model files are supplied.
Key specifications
- Construction
- 2 Pc body
- Port
- Full port
- Connection
- Screwed end
- Working pressure
- PN 25
- Size range
- 8–100 mm
- Nominal bore
- DN 8 to DN 100
- Material variants
- SS 304 · SS 316
- Price table row
- 2pc Screwed End
Features
- 012 Pc Body Construction
- 02Full Port
- 03Size Range 8 mm to 100 mm (DN 8 to DN 100)
- 04Blow Out Proof Stem
- 05Handle with Locking Device available on request
- 06Working Pressure – PN 25
- 07Precision Investment Cast
- 08Screwed Threads to BS 21 BSP/BSPT/NPT/DIN 259/2999 & ISO 228 & ISO 7/1
Available sizes & catalogue prices
| Size | DN | SS 304 | SS 316 |
|---|---|---|---|
| 8 mm | ₹425 | ₹530 | |
| 10 mm | ₹425 | ₹530 | |
| 15 mm | ₹475 | ₹585 | |
| 20 mm | ₹610 | ₹755 | |
| 25 mm | ₹850 | ₹1,060 | |
| 32 mm | ₹1,210 | Price on request | |
| 40 mm | ₹1,810 | ₹2,260 | |
| 50 mm | ₹2,625 | ₹3,280 | |
| 65 mm | Price on request | Price on request | |
| 80 mm | Price on request | Price on request | |
| 100 mm | Price on request | Price on request |
Catalogue unit prices (₹), price row “2pc Screwed End”. Indicative only and subject to formal quotation; taxes, freight and commercial terms are not stated in the catalogue. “Price on request” marks sizes inside the published range with no printed price.
Material specification
| S.No | Part | Material | Specification | Qty |
|---|---|---|---|---|
| 01 | Body | Stainless Steel | ASTM A351 GR.CF8 / AISI 304 | 1 |
| 02 | Ball | Stainless Steel | ASTM A351 GR.CF8 / AISI 304 | 1 |
| 03 | Ball Seat | PTFE | BS 6564 | 2 |
| 04 | Cap / Nut | Stainless Steel | ASTM A351 GR.CF8 / AISI 304 | 1 |
| 05 | Cap / Nut / Seal | PTFE | BS 6564 | 1 |
| 06 | Stem / Spindle | Stainless Steel | ASTM A276 GR. 304 | 1 |
| 07 | Thrust Washer | PTFE | BS 6564 | 2 |
| 08 | Gland Nut | Stainless Steel | AISI 303 / 304 | 1 |
| 09 | Handle | Stainless Steel | AISI 202 | 1 |
| 10 | Sleeve | PVC | BS 6576 | 1 |
| 11 | Handle Lock Nut | Stainless Steel | AISI 304 / 316 | 1 |
01Body
Qty 1
- Material
- Stainless Steel
- Spec
- ASTM A351 GR.CF8 / AISI 304
02Ball
Qty 1
- Material
- Stainless Steel
- Spec
- ASTM A351 GR.CF8 / AISI 304
03Ball Seat
Qty 2
- Material
- PTFE
- Spec
- BS 6564
04Cap / Nut
Qty 1
- Material
- Stainless Steel
- Spec
- ASTM A351 GR.CF8 / AISI 304
05Cap / Nut / Seal
Qty 1
- Material
- PTFE
- Spec
- BS 6564
06Stem / Spindle
Qty 1
- Material
- Stainless Steel
- Spec
- ASTM A276 GR. 304
07Thrust Washer
Qty 2
- Material
- PTFE
- Spec
- BS 6564
08Gland Nut
Qty 1
- Material
- Stainless Steel
- Spec
- AISI 303 / 304
09Handle
Qty 1
- Material
- Stainless Steel
- Spec
- AISI 202
10Sleeve
Qty 1
- Material
- PVC
- Spec
- BS 6576
11Handle Lock Nut
Qty 1
- Material
- Stainless Steel
- Spec
- AISI 304 / 316
- All dimensions are in mm unless otherwise mentioned.
- Due to continuous developments & upgrades, data mentioned above is subject to change without any notice.
Published engineering standards
- Screwed threads
- BS 21 BSP / BSPT / NPT / DIN 259 / 2999 & ISO 228 & ISO 7/1
- Working pressure
- PN 25
Applications
- Pharmaceutical
- Food Processing
- Oil Refineries
- Chemical & Solvent
- Petrochemical & Process
- Compressed Air & Gas
Application areas as listed in the SH VALVES catalogue.
Downloads
Dimension drawings and test certificates: awaiting documents from SH VALVES.
Related product

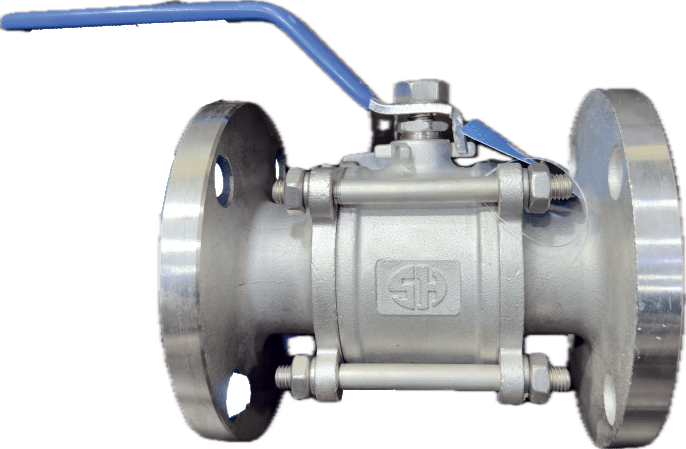

SH-3PC · PN 40
3PC Flanged Ball Valve
Three-piece, full-port flanged ball valve designed to BS EN ISO 17292.
