SH VALVESIndustrial flow control
Precisionthat powersindustry.
Discover SH VALVES stainless-steel ball valve solutions engineered for dependable industrial flow control.
- Families
- 2PC · 3PC
- Sizes
- DN 8 to DN 100
- Pressure
- PN 25 · PN 40
- Material
- SS 304 · SS 316

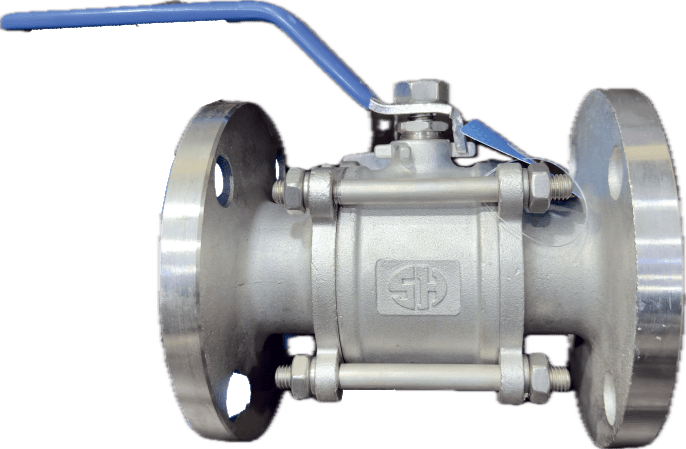

Fig. 01 / SH-3PC
Shown
3PC Flanged Ball Valve
§02Product family navigator
Two valve families. One precise standard.

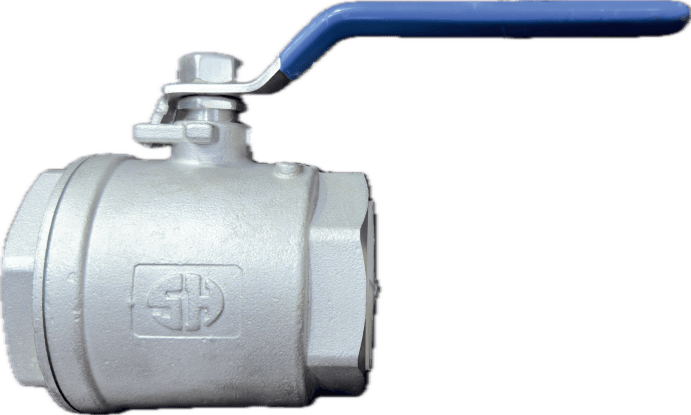

SH-2PC
01 / 02
2 Pc body · Screwed end
2PC Screwed End Ball Valve
Two-piece, full-port stainless-steel ball valve with screwed ends.
Working pressure
PN 25
Size range
8–100mm
- 2 Pc Body Construction
- Full Port
- Blow Out Proof Stem
- Handle with Locking Device available on request
- Precision Investment Cast
§03Engineering features
Built around five published fundamentals.
Each feature below is stated in the SH VALVES catalogue for both the 2PC and 3PC families.
01Full Port Design
Both valve families are published as full port.Applies to: 2PC · 3PC
Listed as a feature of both the 2PC and 3PC valves.Applies to: 2PC · 3PC
Both families are precision investment cast.Applies to: 2PC · 3PC
Handle with locking device available on request.Applies to: 2PC · 3PC
Priced in SS 304 and SS 316 variants in the catalogue.Applies to: 2PC · 3PC
§04Product explorer
Inspect every detail.
Zoom into the official catalogue photography, compare both families and switch material variants.
Zoom 1.0×
Ctrl/⌘ + scroll or double-click to zoom · drag to panPinch to zoom · drag to pan
Photographic view from the official catalogue. A 360° rotatable view will be available once 3D model files are supplied.
Fig. 04 / 3PC Flanged Ball Valve / SS 304
§05Material intelligence
Choose the grade. See the published price.
Both valve families are listed in SS 304 and SS 316. Pick a variant and size to read the catalogue price straight from the published price matrix.
Product
Material grade
Selected variant
2PC Screwed End SS 316
7 sizes priced · 4 on request · DN 8 to DN 100
Size, mm
- Catalogue price
- Price on request
- Not in range
Catalogue unit price · 25 mm · SS 316
₹ 1,060
Published price, row "2pc Screwed End". Indicative only, subject to quotation.
§06Technical capabilities
The published specification, at a glance.
Size coverage · nominal bore, mm
8101520253240506580100
2PC Screwed End · DN 8 to DN 100
3PC Flanged · DN 15 to DN 100
SH-2PC
2PC Screwed End Ball Valve
- Working pressure
- PN 25
- Size range
- 8 mm to 100 mm (DN 8 to DN 100)
- Construction
- 2 Pc body, full port
- Connection
- Screwed end
- Referenced standard
- Screwed threadsBS 21 BSP / BSPT / NPT / DIN 259 / 2999 & ISO 228 & ISO 7/1
- Price table row
- 2pc Screwed End
SH-3PC
3PC Flanged Ball Valve
- Working pressure
- PN 40
- Size range
- 15 mm to 100 mm (DN 15 to DN 100)
- Construction
- 3 Pc body, full port
- Connection
- Flanged end
- Referenced standard
- Design standardBS EN ISO 17292 (BS 5351)
- Price table row
- 3pc Flanged #150
The catalogue states PN 40 as the 3PC working pressure and labels its price row “3pc Flanged #150”. Both labels are reproduced as published; confirm flange rating and drilling with SH VALVES when ordering.
§07Industries & applications
Specified across process industry.
The application areas listed in the SH VALVES catalogue for both the 2PC and 3PC families.
02Fig. 07.2
Food Processing
Process and utility pipework in food and beverage plants.
Catalogue: Food & Pharmaceutical Industries
03Fig. 07.3
Oil Refineries
Flow isolation across refinery process and utility services.
Catalogue: Oil Refineries
04Fig. 07.4
Chemical & Solvent
Pipework in chemical and solvent handling facilities.
Catalogue: Chemical & Solvent Industries
05Fig. 07.5
Petrochemical & Process
Process lines across petrochemical and general process plants.
Catalogue: Petrochemical & Process Industries
06Fig. 07.6
Compressed Air & Gas
Isolation points on compressed air and gas distribution networks.
Catalogue: Compressed Air & Gas Installations
§08Brand
SH VALVES — Since 2007.
A stainless-steel ball valve brand built on two clearly specified product families, published sizes and transparent catalogue pricing.
Est. 2007
Today
[Awaiting company profile]
Company history, facilities and quality information will appear here once approved by SH VALVES.
§09Quick comparison
2PC or 3PC? Compare side by side.
- Valve construction
- 2 Pc body
- Port
- Full port
- Connection
- Screwed end
- Working pressure
- PN 25
- Size range
- 8–100 mm · DN 8 to DN 100
- Material variants (priced)
- SS 304 · SS 316
- Blow-out-proof stem
- Yes
- Locking handle
- On request
- Precision investment cast
- Yes
- Referenced standard
- BS 21 BSP / BSPT / NPT / DIN 259 / 2999 & ISO 228 & ISO 7/1
